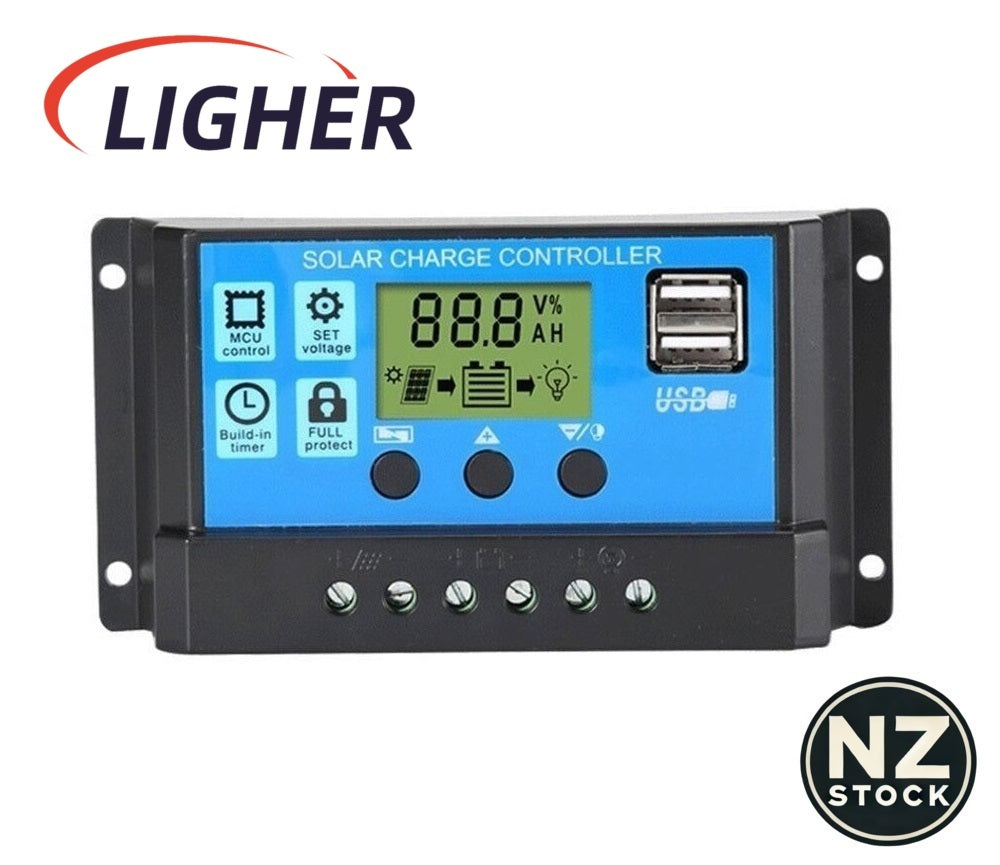

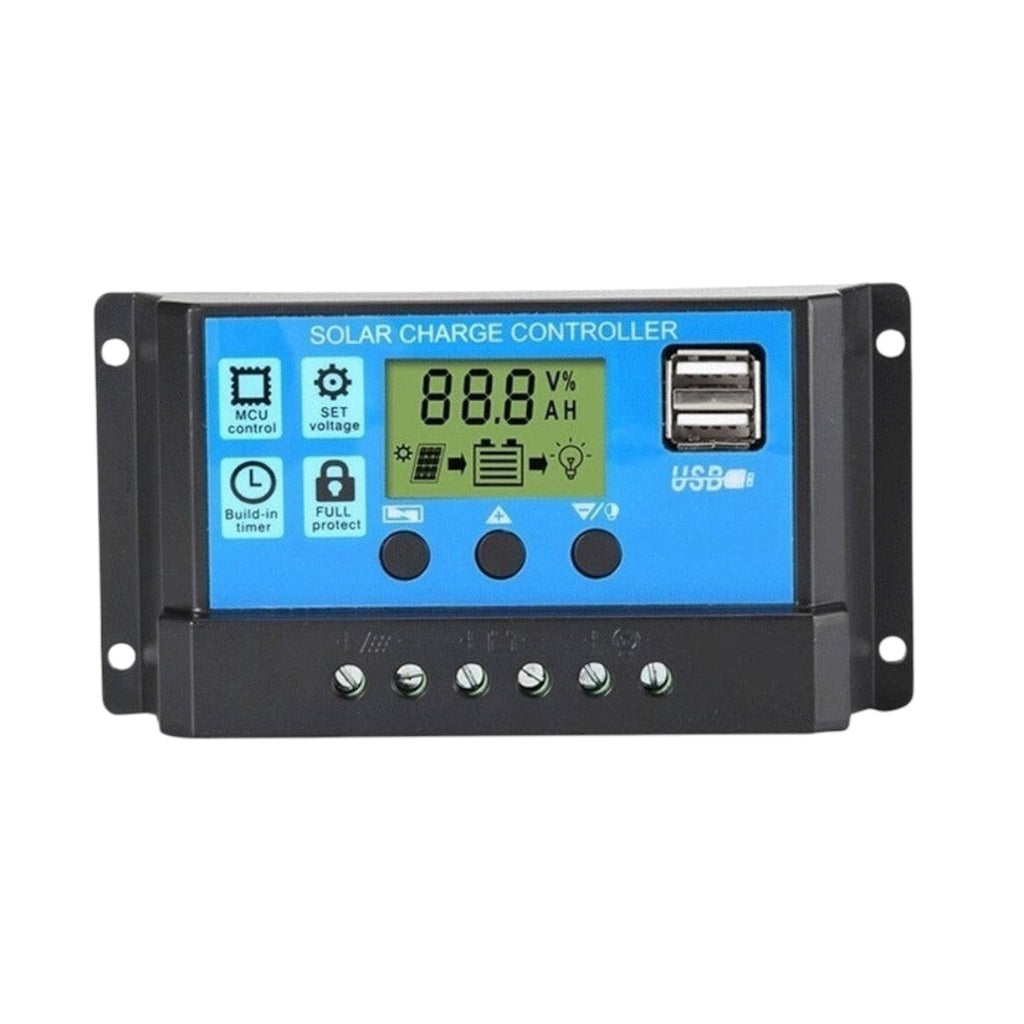

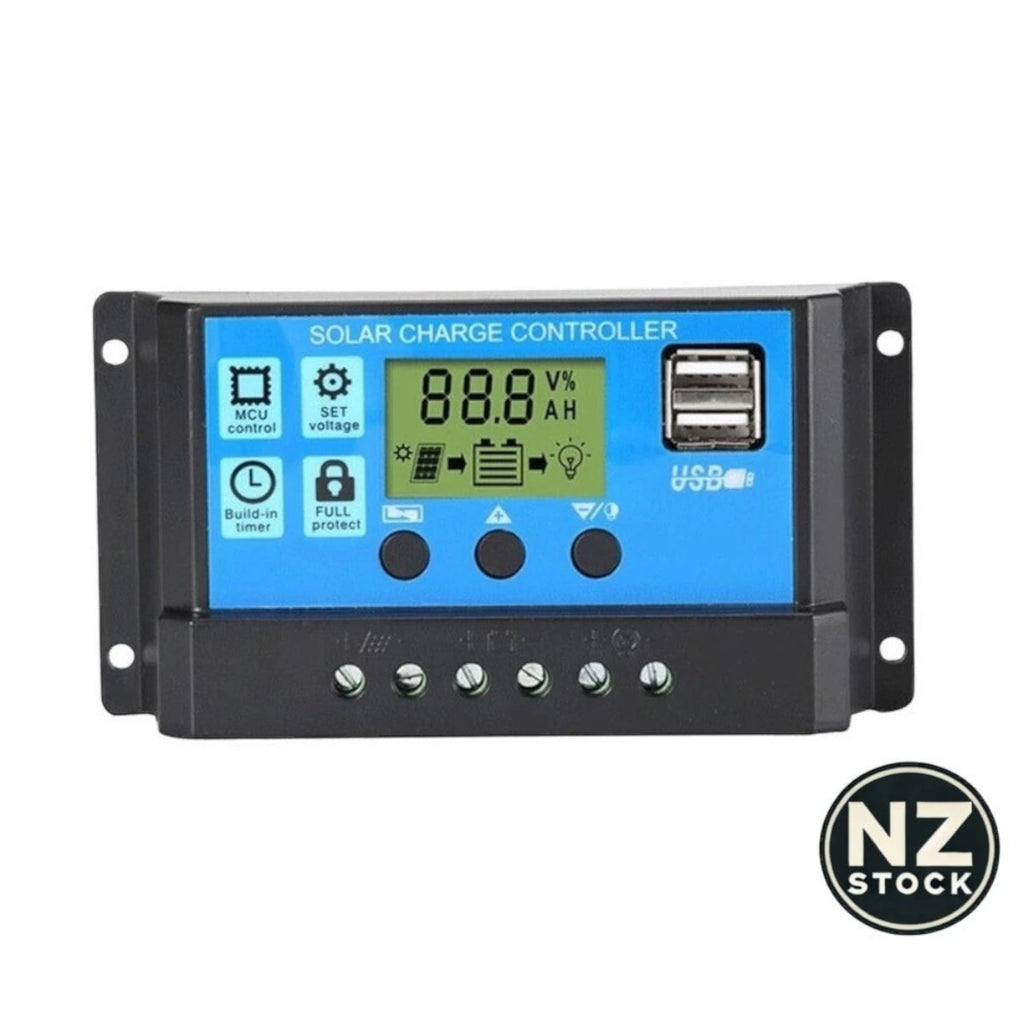

Solar Charge Controller 12V/24V PWM Regulator with LCD Display – NZ Stock
Available in 2 sizes. 20A,30A
Features:

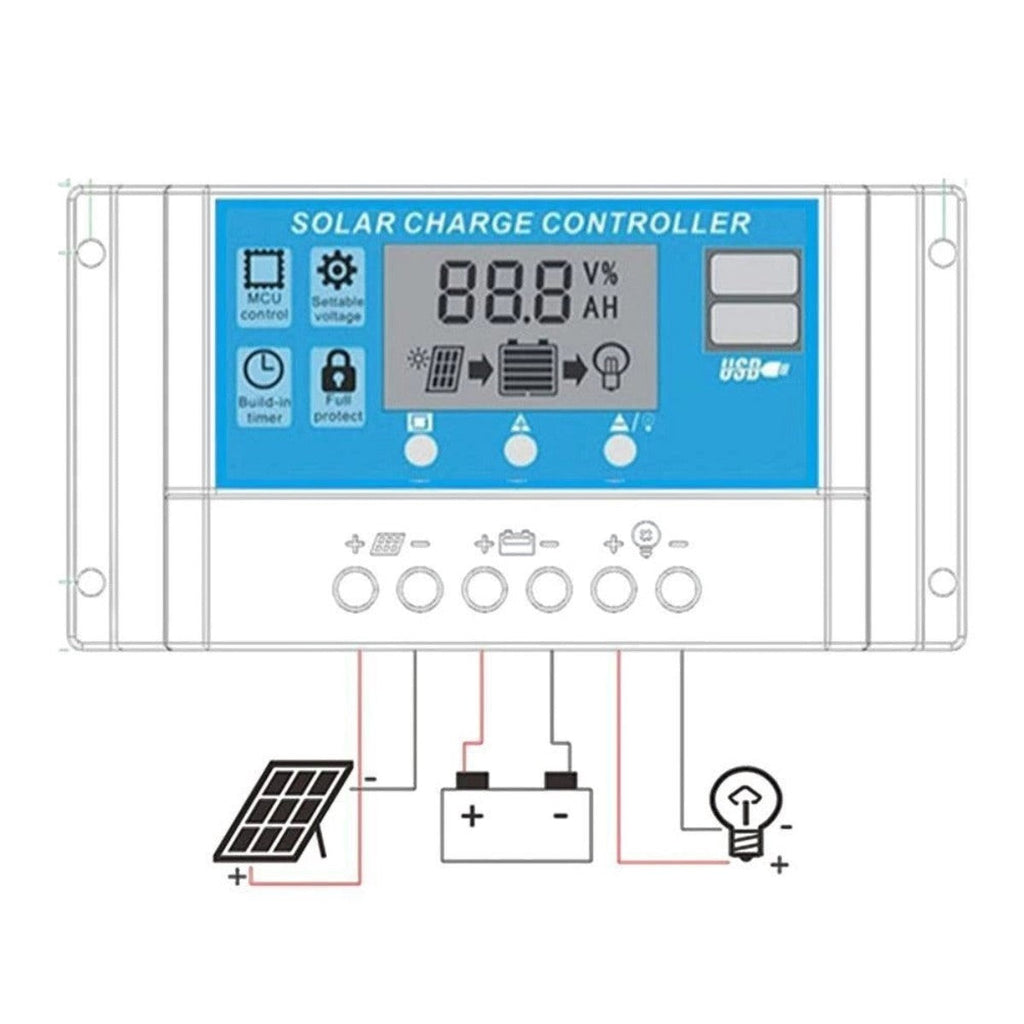

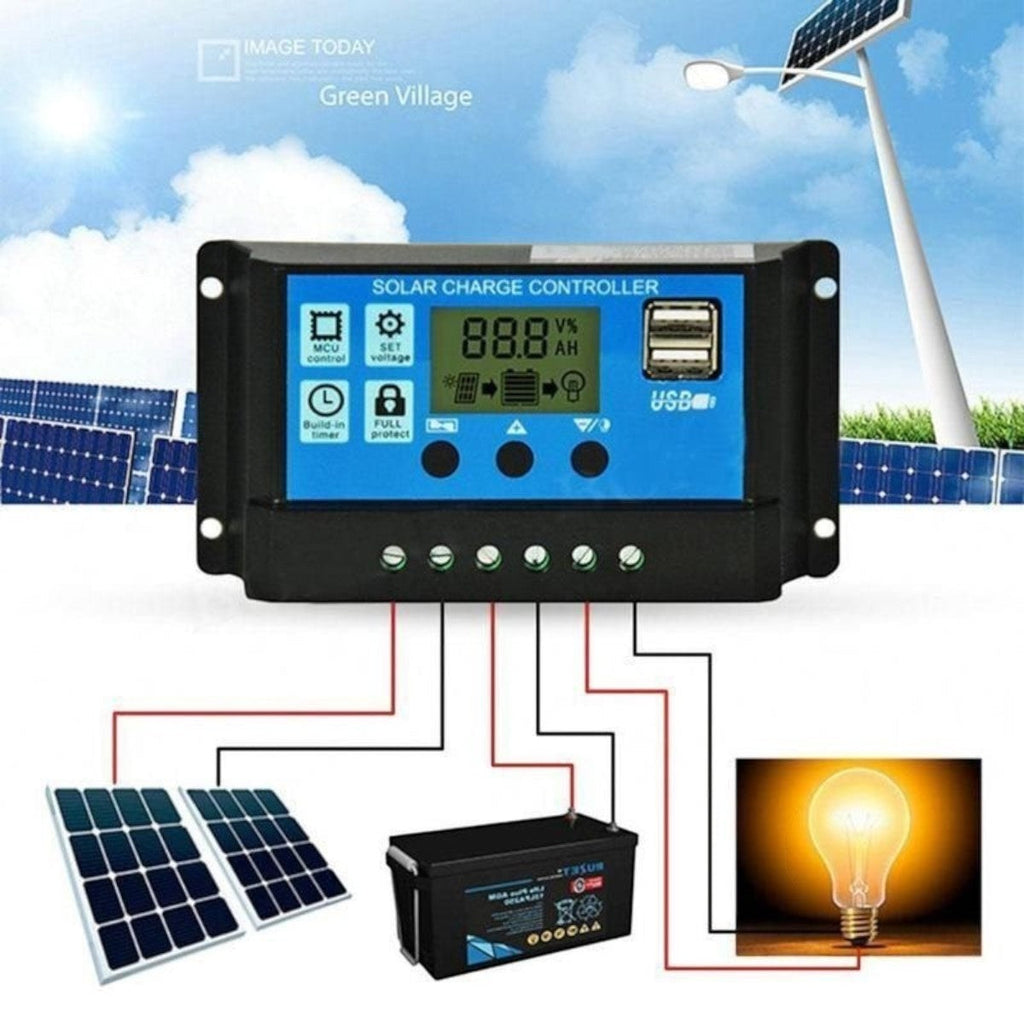

- Automatically manages the solar panel and battery in your solar power system.
- Built-in over-current, short-circuit, open-circuit, reverse connection, and overload protection for safe operation.
- Simple to install and easy to operate.

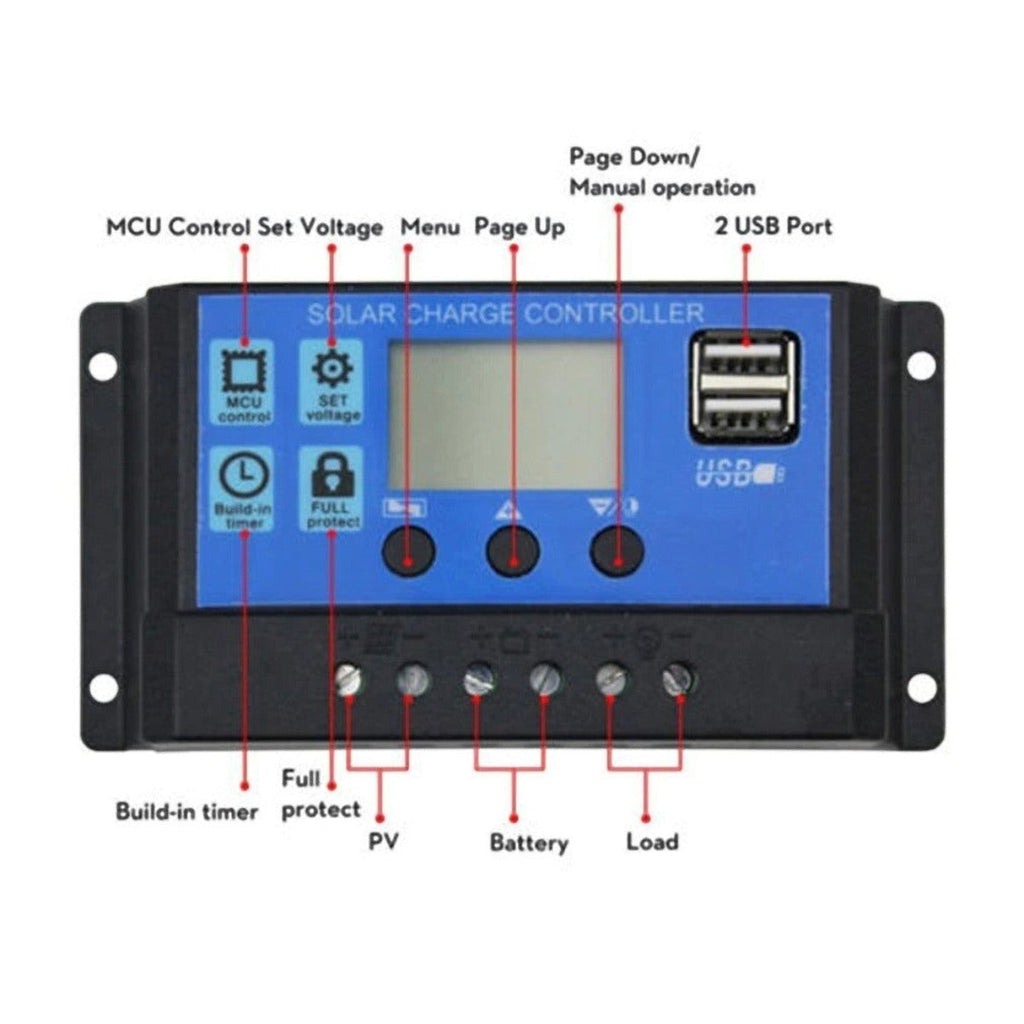

- Large LCD display shows adjustable settings and system information clearly.
- 3-stage PWM charging for efficient battery charging and longer battery life.
Specifications:

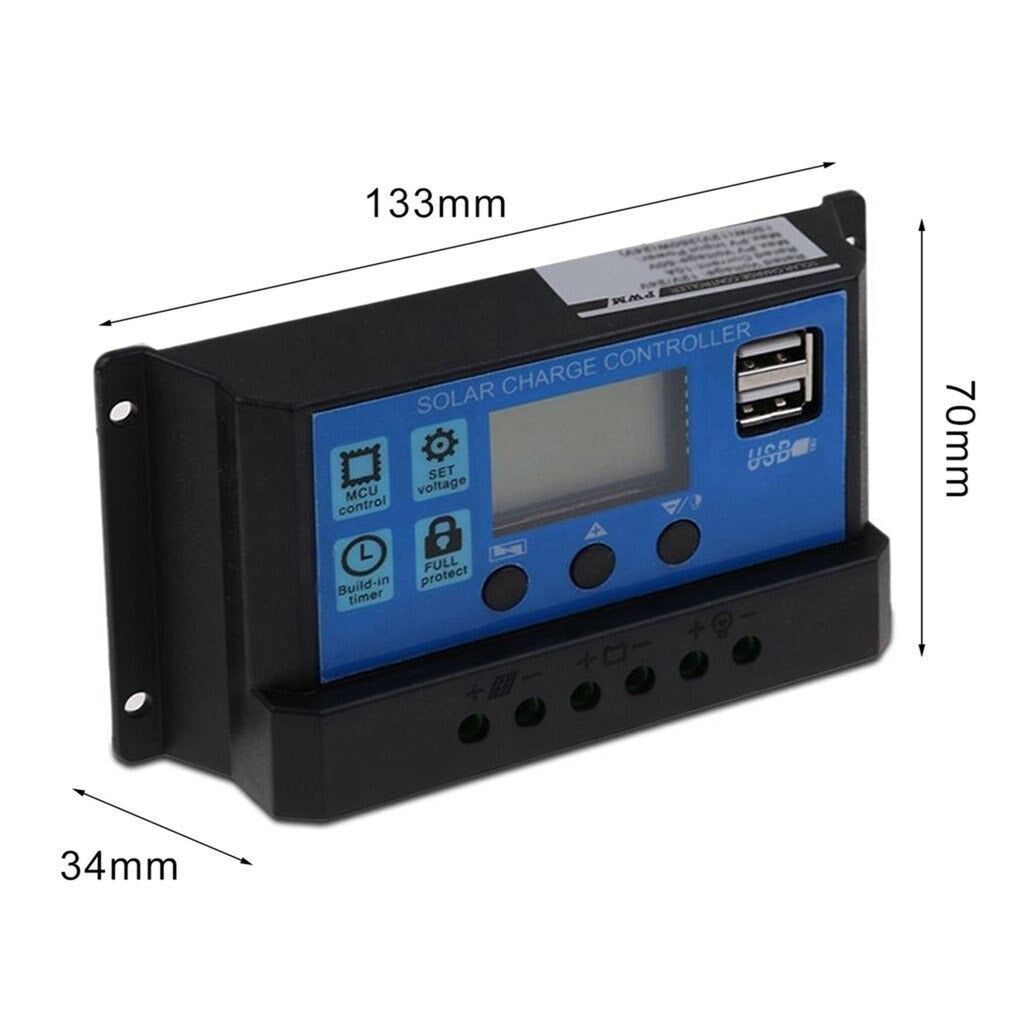

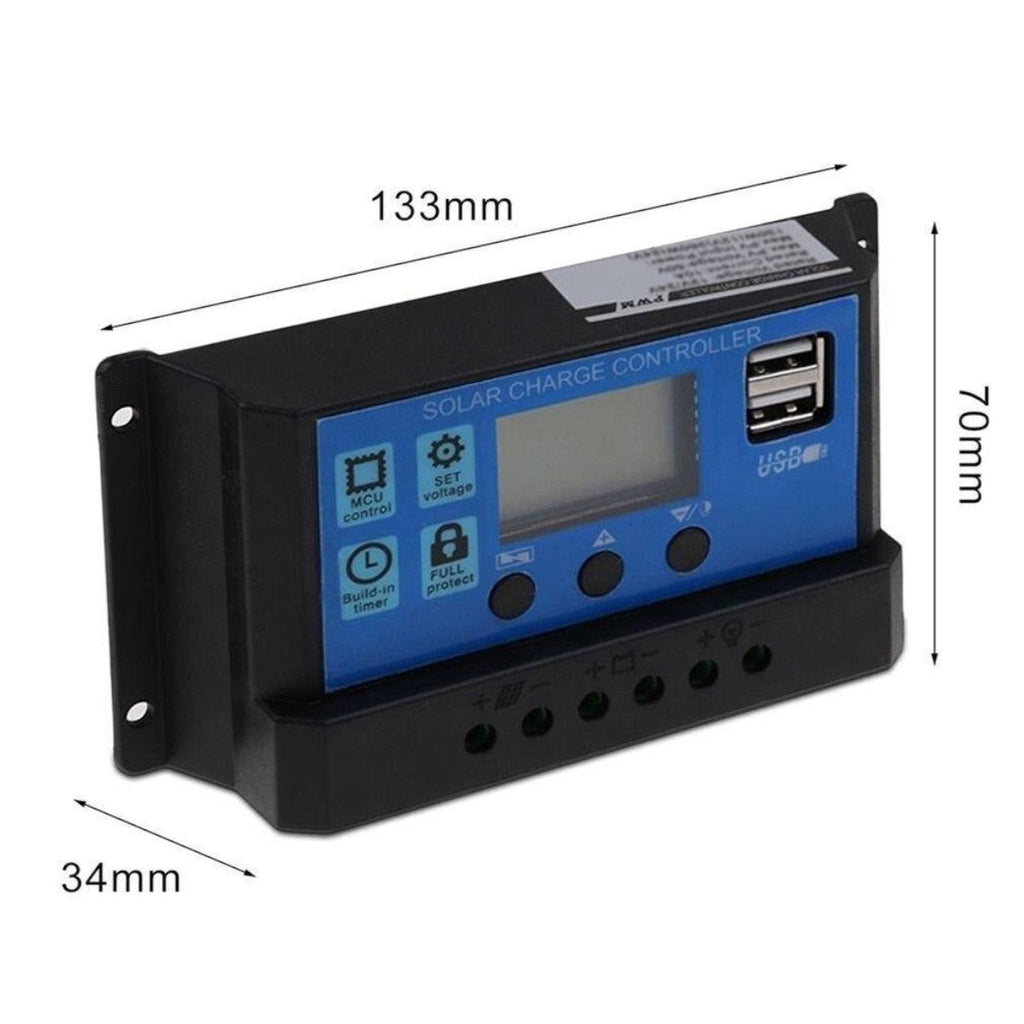

- Size: 133 × 70 × 34 mm
- Weight: 132 g
- System Voltage: 12V / 24V auto adaptation
- Charge Current: 20A
- Charge Current: 30A
- Discharge Current: 10A
- Max Solar Input: 46V (24V system), 23V (12V system)
- USB Output: 5V / 2A
- Self-Consumption: <10mA
- Operating Temperature: -35°C to +60°C
Package Includes:
- 1 × Solar Charge Controller
- 1 × User Manual
