Description
HDMI Audio Extractor ARC to Optical SPDIF, Coaxial, RCA L/R, and 3.5mm Stereo Adapter | HDMI ARC Audio Return Channel Converter

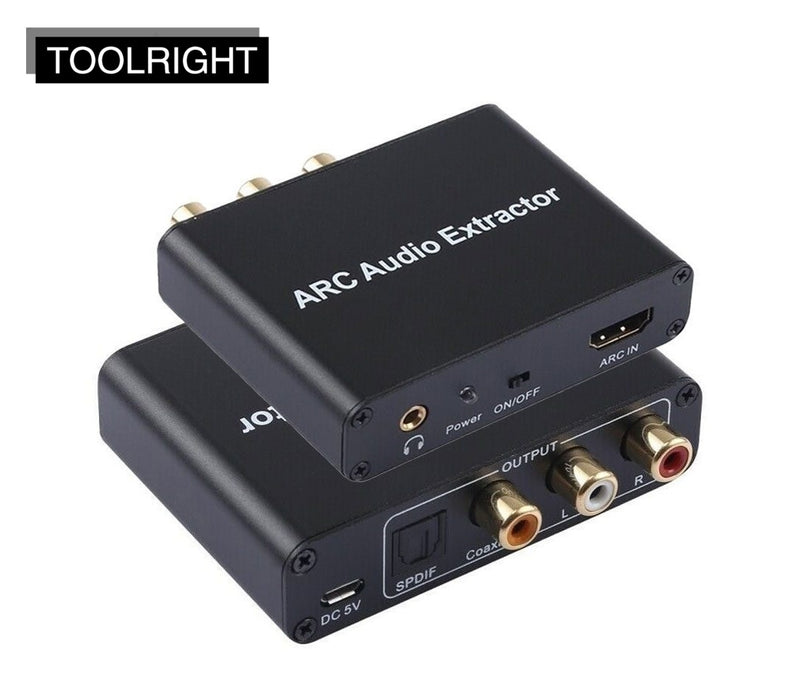

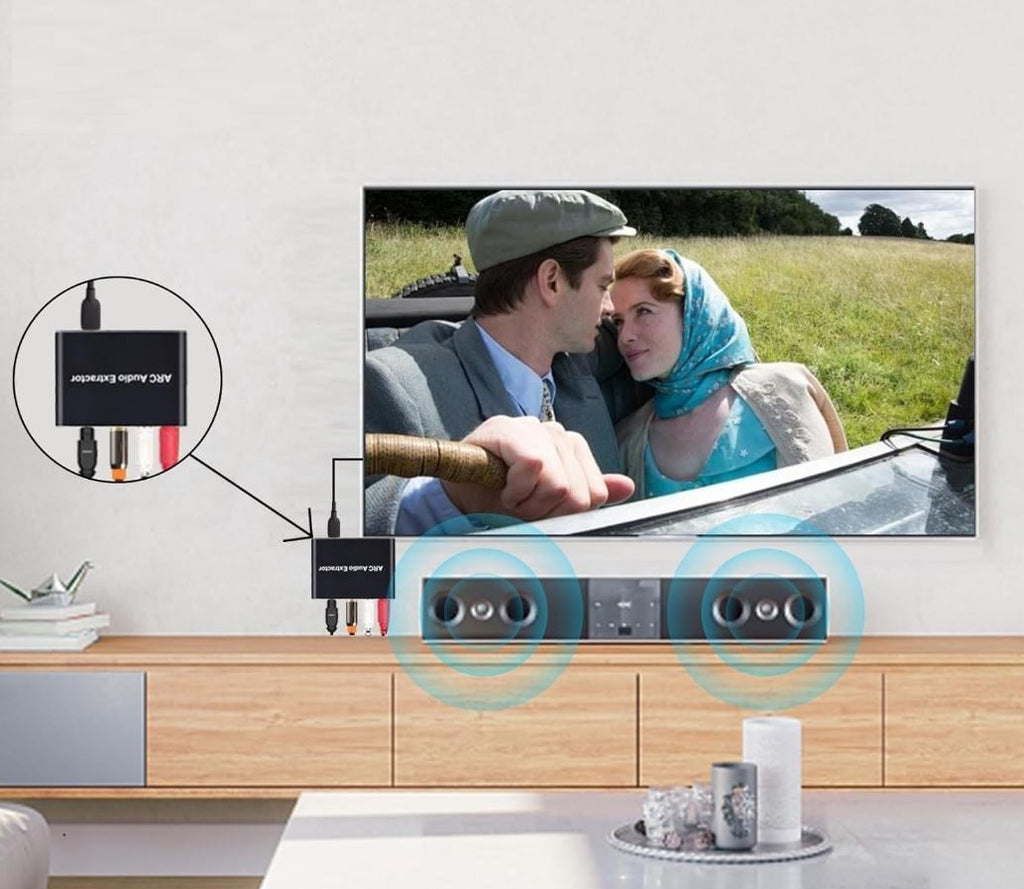

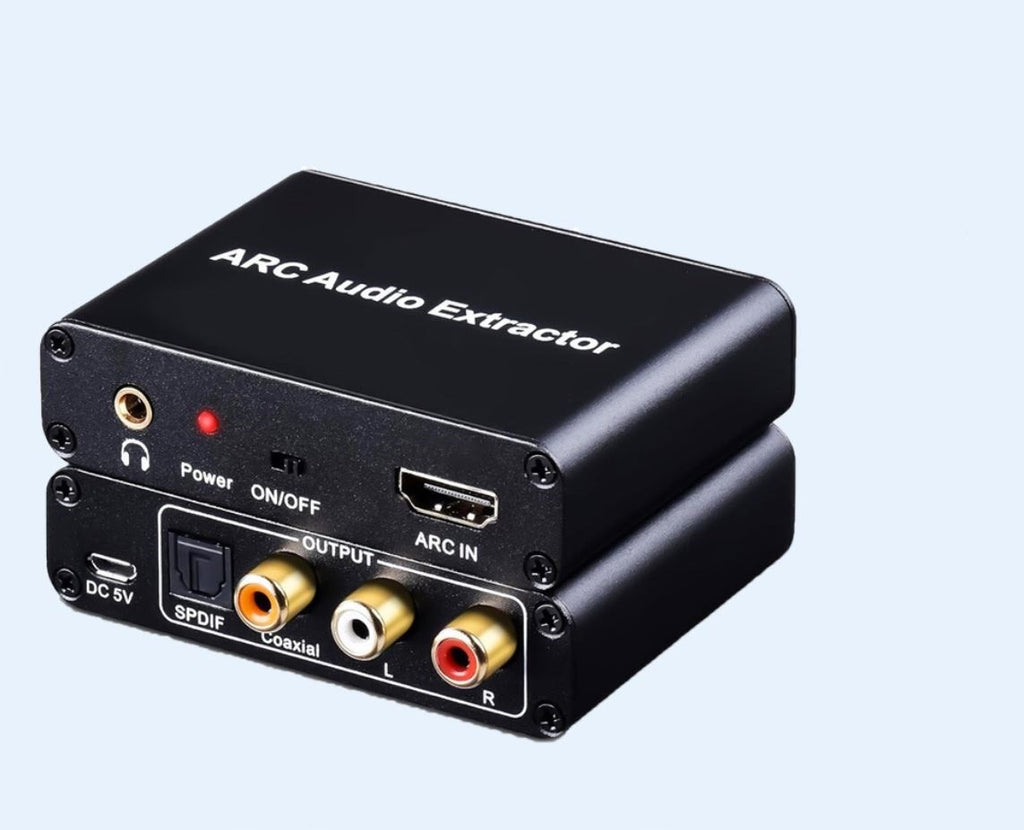

The Onvian HDMI Audio Extractor ARC Adapter is designed to transmit audio from a TV (with ARC function support) to Optical SPDIF, Coaxial, RCA L/R Stereo, and 3.5mm headphone outputs—all simultaneously. This adapter is the perfect solution for TVs without dedicated audio output ports, allowing seamless connection to amplifiers, sound systems, and headphones.
Features:
Supports SPDIF (Optical) output
Supports Coaxial output
Supports RCA Stereo output
Supports 3.5mm stereo headphone output with built-in high-performance audio amplifier
Automatic signal mute function
Supports up to 192KHz audio sampling rate
Optical & coaxial interface supports 5.1 channel audio transmission
Specifications:
Product: HDMI ARC Audio Extractor Adapter – Fiber, Coaxial, 3.5mm, RCA Stereo Converter
Material: Aluminium Alloy
Warranty: 100 Days
Power: DC 5V/1A (Micro USB, adapter not included)
Max Operating Current: 65mA
Size: 8 x 5.8 x 2.1 cm
Weight: Approx. 88g
Colour: Black

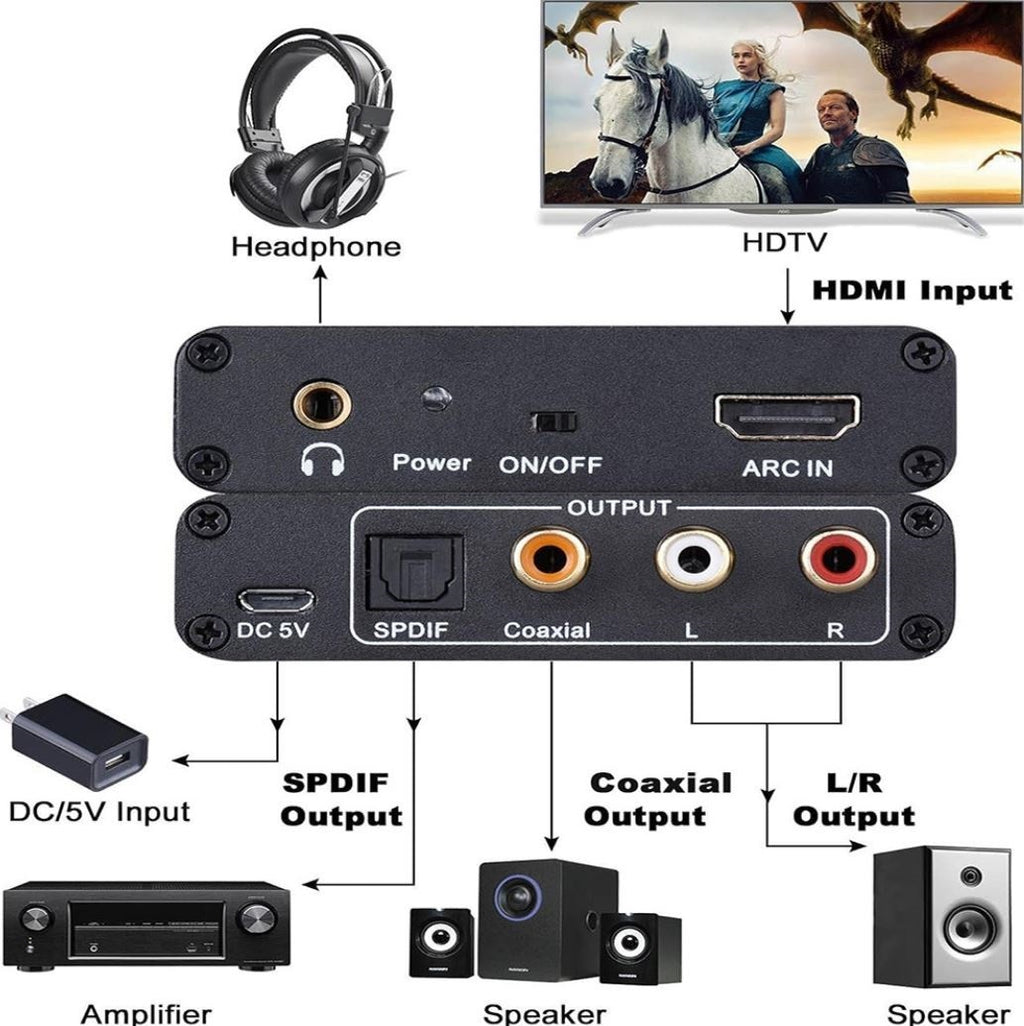

Connection Diagram:
Connect the adapter’s HDMI port to the HDMI/ARC port of your TV (use only ARC-marked HDMI ports).

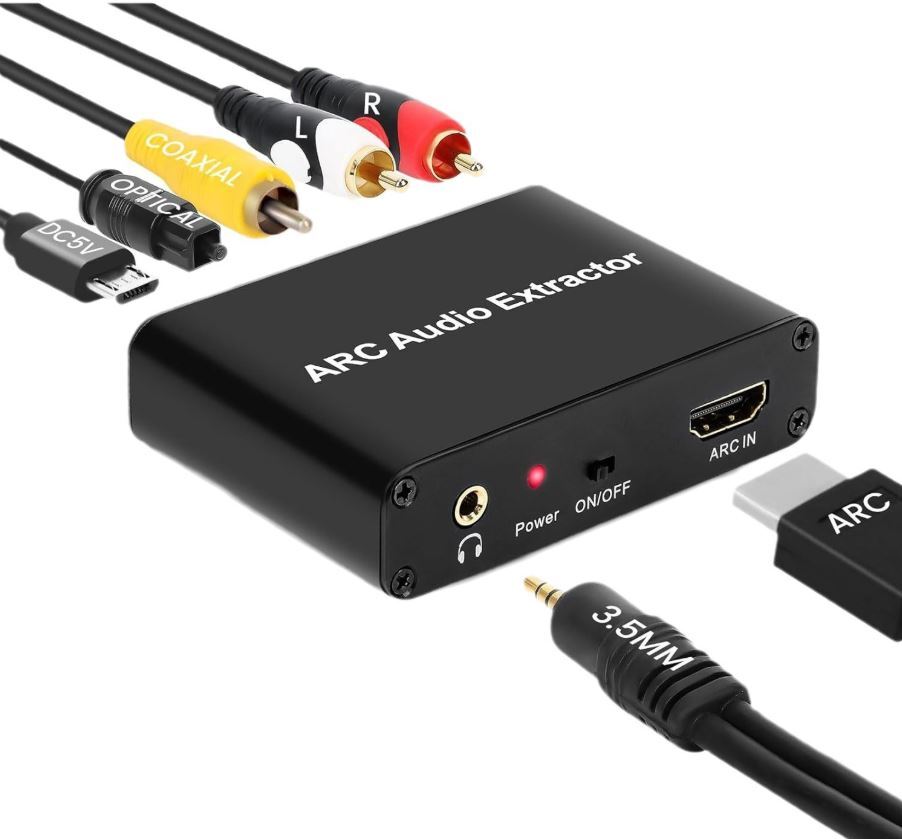

Use optical, coaxial, RCA, or 3.5mm audio cables to connect the adapter to your amplifier/sound system.
Plug the included USB power cable into the adapter (5V/1A adapter not included) and connect to a power source.
Switch the adapter ON and enjoy high-quality audio output.

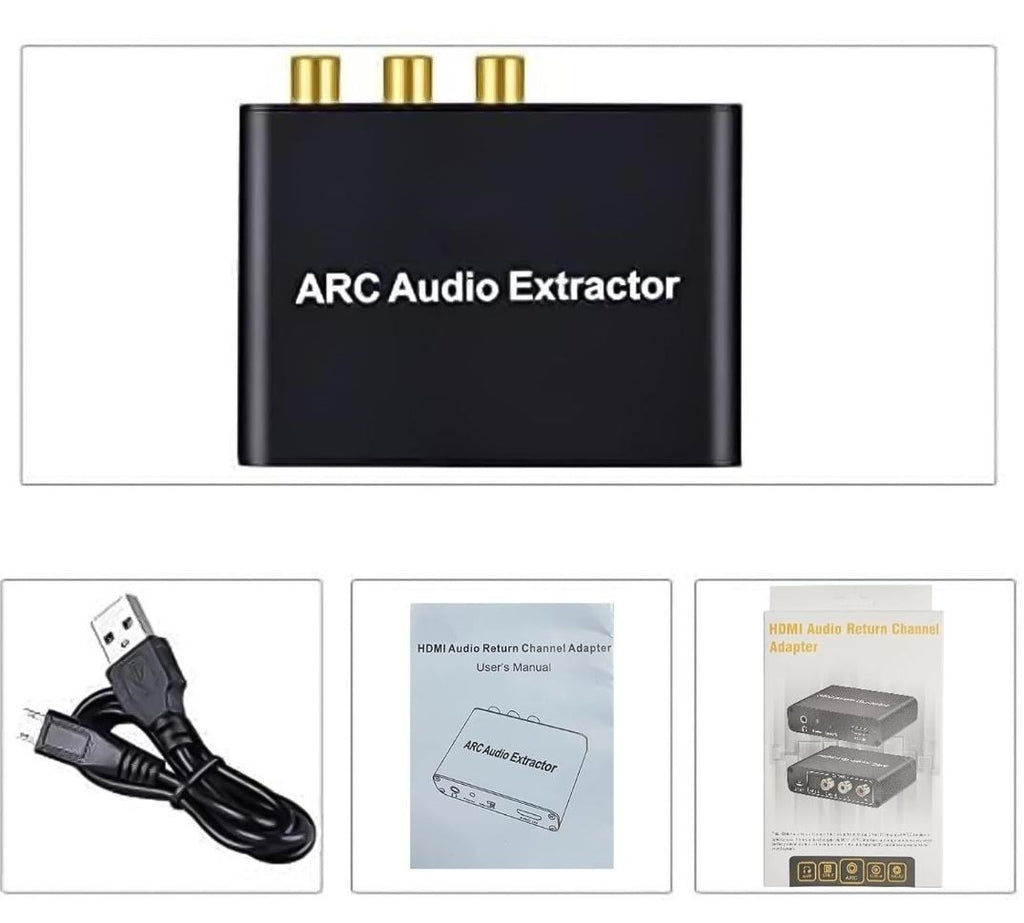

Package Includes:
1 × HDMI ARC Audio Extractor Adapter
1 × USB Power Supply Cable (adapter not included)
1 × User Manual
